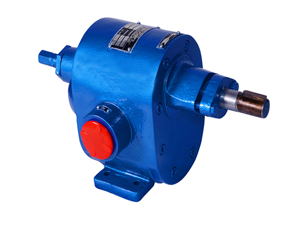

External Gear Pump ( Big Size)
Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filtration application. Inquire Now
- Capacity: 550 to 3200 lpm
- Delivery pressure upto: 10kg/cm2
- Pump having flanged end connection.
- Provided with inbuilt relief valve
- aterial of Construction: Cast Iron, Cast Steel, SS 304, SS 316, Gun Metal
- Liquid handled from low to high viscous range.
- Heavy duty construction pump having large case suctional thickness for long
- Used in loading unloading of liquids, storage of liquid, transfer, high pressure application
- Used in chemical industries & petrochemical plants & refineries
- Pump available from size 1 1/2" to 6".
- Pumps available in C I, Cast Steel, SS304, SS316, Monel
- Capacity: 120 lpm to 2300 lpm
- Sealing: Gland Packing/ Mechanical Seal
- Pump Provided with inbuild relief valve
- Useful for low to high viscocity liquid transfer
- High Temperature: can be used for pumping hot liquid upto 1800 C
Standard Specification For "Dhara Pumps" Rotary External Gear Pumps
| No | Pump Model | MAXIMUM CAPACITY IN LPM AT 0 PSI | NOZEL SIZE | RPM | PRESURE Vs. H.P. TABLE (PRESURE IN PSI) |
|---|---|---|---|---|---|
| 1 | DP 100 | 120 | 1½" | 1440 | |
| 2 | DP 200 | 235 | 2" | 1440 | |
| 3 | DP 350 | 375 | 2½" | 1440 | |
| 4 | DP 500 | 550 | 3" | 1440 | |
| 5 | DP 700 | 750 | 3" | 1440 | |
| 6 | DP 1000 | 1100 | 4" | 960 | |
| 7 | DP 1500 | 1600 | 4" | 960 | |
| 8 | DP 2000 | 2100 | 6" | 960 |
